Description

Due to the growing share of online shopping nowadays, an additional sales channel for companies has come up. Internet sales have become an essential part of retail business in recent years. Consequently, the volume of traffic caused by delivery services has increased rapidly with the success of e-commerce. Likewise, the delivery market slowly transforms from a mainly B2B market to a B2C one (e.g. Drone delivery). The final track of the supply chain – home delivery to a customer – is called Last Mile. The Last Mile of a delivery poses significant logistical challenges, especially regarding the increasing customer expectations, such as "same day delivery" or "exact time delivery" which leads to the decreasing time available for planning. Furthermore, the Last Mile has a huge effect in the traffic of commercial vehicles in cities. Moreover, the Last Mile Delivery accounts for a major part of the costs involved in a delivery. A research of Capgemini Research Institute showed that the costs of it account 41% of the overall supply chain costs (Jacobs, Warner et al., p. 20).

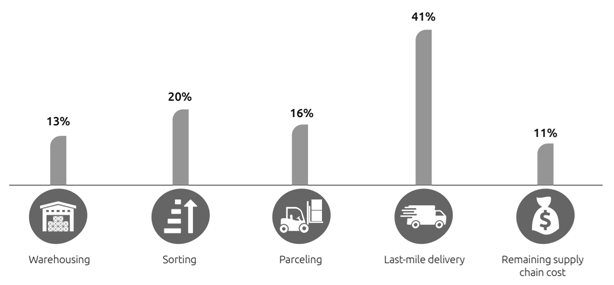

Figure 1 - Distribution of overall supply chain costs (Jacobs, Warner et al., p. 20)

In the reality of Last Mile Delivery, challenges like a small or single order compared to deliveries to stores, many constantly changing geographically dispersed locations (compare deliveries to stores) etc. must be faced. The goal is to improve the efficiency of Last Mile Delivery, minimise costs incurred, improve safety, minimise the impact on traffic, and minimise the environmental impact. To improve the quality of life in the affected areas, the Last Mile Delivery should become environmentally friendly and emission-free (noise and emissions), the volume of traffic should be reduced to prevent illegal parking, collisions and stressful congestion.

Problems to be solved:

CongestionAir QualityCollisionIllegal parkingLimited access to inner cityCosts

Congestion, bad air quality, collisions and illegal parking are all ills affecting the quality of life of citizens. The accessibility of inner-city locations is becoming more and more limited for cars and trucks in contrast delivery services are growing especially in these dense inner-city areas. There are several solutions to solve these problems that reduce pollutant emissions, lower the impact on traffic, improve safety and make Last Mile Delivery more efficient.

Benefits

Benefits show tangibly how implementation of a Solution can improve the city or place.
Main benefits
  • Reducing use of fossils

  • Reducing local air pollution

  • Improving life quality

  • Reducing need for travel

  • Enabling new business opportunities

Potential benefits
  • Encouraging digital entrepreneurship

  • Reducing operation costs

  • Increasing share of renewables

  • Reducing GHG emissions

  • Promoting sustainable behavior

Variants

A variant is generally something that is slightly different from other similar things. In the context of Solutions, variants are different options or possibly sub-fields/branches by which the Solution may be implemented, e.g. different technological options.
Description

Electric vehicles perform the final stage of the supply process. This thereby ensures that carbon-emitting vehicles can be reduced in the most highly polluted area of a city. This model is a concept that offers great opportunities for replicability in many other environmental areas and therefore offers a good solution for any location seeking to reduce air pollution levels.

Description

Using electric fleets as Last Mile Delivery system reduces the carbon-emitting vehicles in the areas of concern. Due to the smaller size of the vehicle not only is traffic reduced but also illegal parking. Plus, e-bikes can access narrow streets and the deliverer does not need a driver’s license.

Use Cases

Mobility

Electric Assist Cargo Bikes (Pedelecs) for goods delivery in Manchester

The aim is to promote the sustainable alternatives for local deliveries using electric Assist cargo bikes. The Municipality offers the use of 4 bikes leased from a fleet of different bikes owned by Manchester Bike Hire to any organization in Manchester.

Description

Another opportunity to improve the Last Mile Delivery is drones. Autonomous drones can significantly accelerate delivery times and reduce the human costs associated with the delivery.

Drone delivery (exploit technological advance) may reduce routing costs:

  • Eliminate driver expense
  • Faster delivery time

Factors impacting success/benefit:

  • Number of occasional drivers
  • The willingness of occasional drivers to deviate from the direct route to the destination
  • Compensation of occasional drivers
Description

Self-driving delivery robots deliver goods to the customer on a determined and controlled path. The customer must unload the robot receiving the ordered goods.

Description

Fully autonomous delivery vehicles deliver the goods to the customer. The customer must unload the vehicle receiving the ordered goods.

Description

The goods are transported in capsules moving within an underground pipeline system.

Description

Reception boxes are fixed on the wall outside of the customers building. The box can be accessed by a key or an electronic code. This way of delivery gives the customer not only opportunity to receive a message as soon as the good is delivered, but to deliver goods anytime regardless of his presence. Plus, the boxes are temperature controlled which makes food delivery possible at any time (Iwan, Kijewska et al. 2016, p. 646).

Description

Delivery boxes in contrast to reception boxes belong to the delivery company. The boxes are being filled at a distribution depot and are temporarily fixed on the customers outside wall of his home. Empty boxes or boxes containing returns are collected by the delivery company either at the delivery tour or an extra tour (Iwan, Kijewska et al. 2016, p. 646).

Description

The delivery driver gets access to a locked area in which to place the good. The customer can access this area with a code, App or a key box. The delivery driver needs to deliver to less locations in comparison to home delivery. Moreover, the customer doesn’t need to be at home.

Description

The goods are delivered to a collection / pick up point (nearest post office, convenience store, petrol station). When the good is delivered the customer gets informed that they can pick up their order. The goods are stored there until the customer picks them up. The possibility exists that the goods get delivered to the home of a customer, this must be arranged with the collection point / pick up point. Due to the lower density of delivery locations, the delivery process becomes more efficient. In this respect again, the customer does not need to be at home at time of the delivery (Iwan, Kijewska et al. 2016, p. 646).

Description

Parcel lockers are all day and night accessible containers used to send and receive goods. They are groups of reception box units. The difference is that locker banks/parcel lockers are not installed in front of a house but sited in e.g. car parks, railway stations or apartment blocks. To access it, an opening code is used, which is sent to the customer as soon as the order is placed in the locker. It is possible for the customer to be informed when the order is placed in the box. Plus, lockers can either be used by many or just one delivery company. The concept of locker banks/parcel lockers requires that the customer himself takes over the home delivery. To shape this process as positively as possible, parcel lockers must be placed at strategically favourable locations (Iwan, Kijewska et al. 2016, p. 646).

Box (consolidates deliveries) delivery reduces routing costs:

  • Quantity variation reduced
  • Location variation reduced
  • Delivery locations closer to supply locations
Description

The idea of the micro hubs is to lower the number of motorized vehicles involved in the delivery process. Bigger amounts of goods are delivered to a micro hub (container, locker, area, etc.). The home delivery – the Last Mile Delivery – by motorized delivery cars is being replaced by CO2-free vehicles. This reduces e.g. illegal parking and traffic in inner cities. Furthermore, people without a driver’s licence can do the Last Mile Delivery. To maximize the efficiency the location of the micro hubs must be strategically well chosen.

Description

Crowdsourcing consists of outsourcing the Last Mile Delivery to “everyday” people (crowd). It is a ridesharing concept like Uber or Lyft but with goods instead of people (Castillo, Bell et al. 2018). Especially people who are often moving in a similar way for personal or working reasons could be part of the “crowd”. The concept includes that the transportation process has no negative environmental impact because the person taking the goods would have done the ride anyway. Working with CSL is more of a risk than working with a full-time fleet because of the individual contracts of the drivers (Mangiaracina, Perego et al. 2019, p. 14).

Benefits of CSL:

  • May reduce routing costs
  • Reduced vehicle fleet
  • Reduce driver costs
  • Faster delivery times
Description

The goods are delivered to the customer's trunk as a mobile address and reception box. In order to collect the needed data, the customer's car must be a smart car. For example, by tracking the parking routine of a customer by an app, the delivery company is able to optimize the route. After the customer gives time-limited access to the car the delivery company, the courier can either deposit a parcel or retrieve a shipment for return. Trunk delivery makes deliveries closer to the supply location and reduces routing costs (postparcel.info).

Description

Dynamic pricing means applying different prices to different delivery time windows. The delivery time is defined while ordering goods. Depending on the optimisation of the delivery truck route, the price lowers. If the other delivery locations for example are close, the price is low, if not the price rises. This concept aims at an optimised delivery route (high customer density) to save costs and distance (Mangiaracina, Perego et al. 2019, p. 15).

Description

Mapping customer behaviour is used to lower the number of failed deliveries. Data like electricity consumption are used to map the customers presence at home. Based on that a delivery schedule is defined that maximises the probability the customer is home (Mangiaracina, Perego et al. 2019, p. 15).

Supporting Factors

  1. High package density: a large number of ordered packages per area.
  2. Support of local authorities:  e.g. by limiting access to parts of the city to make smart solutions for LMD unavoidable.
  3. Simple handling: user-friendly use of the alternative method of delivery – no or little difference in the order.
  4. Smart data analytics: the use of data-driven applications optimizes routes and operations while creating additional revenue streams.

City Context

What supporting factors and characteristics of a city is this Solution fit for? What factors would ease implementation?

1. Size of the city:

The main difference between rural and urban areas is the population density. According to a study by McKinsey, within Germany, 24 packages per person and year are ordered. As a result, the package density depends on the size of the city – the bigger the population density, the bigger the package density. Moreover, a study by Bundesnetzagentur shows that in 2016 the largest number of packages were delivered in Berlin – the most populated city in Germany (bundesnetzagentur.de).

  • Operational hours/number of vehicles:
    • Large cities: larger number of vehicles and drivers or more time
    • Smaller cities: a small number of vehicles is enough
  • Regulation:
    • Medium size and large cities are more likely to restricted access to the inner city
    • Cities without a city centre have no need to restrict access
  • Package density
    • Large cities: due to the large package density the distances to be covered are shorter and the number of packages higher
    • Smaller cities: little package density and number of packages

2. Local stores:

The number of ordered packages depends on the offer of local stores and the distance customers need to travel to get there. This is also related to the size of the city and the location the customer lives.

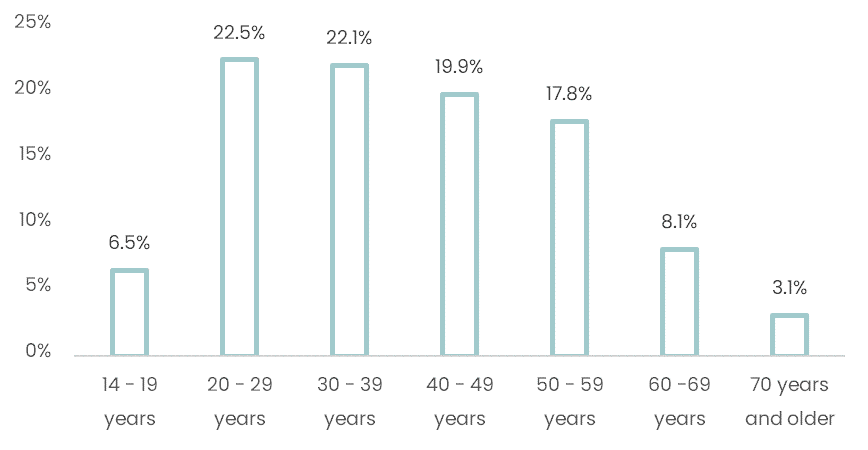

3. Age demographics:

The age structure of a city also influences the number of parcels and thus the parcel density. The following figure shows the percentage of online buyers in the different age groups:

Based on de.statisia.com

Use Cases

Explore real-life examples of implementations of this Solution.

Mobility

Electric Assist Cargo Bikes (Pedelecs) for goods delivery in Manchester

The aim is to promote the sustainable alternatives for local deliveries using electric Assist cargo bikes. The Municipality offers the use of 4 bikes leased from a fleet of different bikes owned by Manchester Bike Hire to any organization in Manchester.

Mobility

Air

Last Mile Delivery SBIR Challenge

A desire to find a way to improve the efficiency and effectiveness of urban deliveries was the inspiration behind the “Last Mile Delivery Challenge”. Launched in late 2018, the project is co-funded as part of the Small Business Innovation Research Programme.

ICT

Mobility

Ettlingen - Electromobile Logistics in a Medium-Sized City

Parcels are delivered in bundles to a micro-hub and from there delivered emission-free by e-vehicles to publicly accessible parcel lockers, multi-label stores and private end customers in the city.

Mobility

Reducing Inner-City Traffic Congestion in Reutlingen

Bundled delivery of parcels to a hub in the city centre and emission-free delivery from there to publicly accessible parcel lockers, multi-label stores and private end customers in the city, all of which leads to reducing traffic and emissions.

Mobility

Other

Shared District Boxes

Munich is testing two “Shared District Boxes” located in the proximity of mobility stations. These boxes make delivery, shopping and sharing services possible on a 24/7 basis. Each box features compartments at different temperatures (cooling, refrigerated or at a constant ambient temperature).

Mobility

Clean Logistics and Last Mile Delivery in Nottingham

This measure is a concept that encapsulates the provision of a delivery service, where electric vehicles perform the final stage of the process. This thereby ensures that carbon-emission producing vehicles can be reduced in the most highly polluted area of a city.

Mobility

Sustainable City Logistics - Cargo Bikes for Last Mile Delivery

This Use Case aimed to find a feasible solution to reduce the delivery of goods by cars and trucks in the city centre. Several kinds of boxes and logistic systems were tested out in cooperation with delivery companies.

Mobility

Offering a Test Fleet of E-Bikes and Cargo Bikes

This measure consists of offering companies and residents in Årsta district in Stockholm, the possibility to test e-cargo bikes for a limited period of time in order to find out whether, and to what extent, these vehicles provide a viable mobility option.

Energy

Mobility

Electric Van Test Fleets for Craftsmen and Delivery Companies

The City of Stockholm and partners aim to tackle prejudices against EVs by inviting 20 business in the craft, delivery, and taxi sectors to try electric vans for one year. These businesses will be able to lease an electric van for the same cost as a fossil fuel-powered van.

Mobility

Prototype for an Ultra-Low-Emission Cargo Vehicle

Within this measure, Madrid City Council cooperated with AVIA, a vehicle manufacturer, to develop a prototype of a 12-ton electric cargo vehicle adapted to the specific needs of Madrid’s urban delivery sector.

Mobility

Neighbourhood Oriented Concierge System

The Use Case is to develop a partnership with logistic service providers and to set up a Concierge Service for the Domagkpark housing area in Munich.

Mobility

Other

Night-Time Deliveries Using Clean and Silent Vehicles

The City of Stockholm is implementing a new silent night-time delivery scheme, including the electric plug-in van, to investigate the effects of goods delivery during night versus daytime and the implications and regulatory requirements of lifting the ban on night deliveries.

Energy

Mobility

Consolidation Centre with Electric Vehicles and Local Regulations for Clean Urban Freight Logistics

The measure tested the advantages of urban freight distribution based on a new urban freight consolidation centre, using electric vans, compared to current practice, serving the logistics needs of shops located in the city centre.

Mobility

Energy

Microdistribution of freight in Barcelona

Last mile delivery of goods is a new approach to reducing congestion, lowering emissions and diminishing delivery times in dense urban areas.

Mobility

ICT

Building

Communal service boxes for sustainable deliveries

Smarter deliveries cut traffic generated by shopping and provide better information on delivery times, while the use of cleaner vehicles will help to reduce local emissions and noise.

Mobility

ICT

Smart DCU: Delivery Robots

The trialing of autonomous 'last mile' delivery robots by the tech companies Transpoco and Hosted Kitchens, at the Dublin City University (DCU) campus.
