Energy
Approximately one-quarter of the energy price is owed by the transportation of the energy. The implementation of a local energy system can shift the energy production from a centralised system to a decentralised system.
Affordable And Clean Energy
Industry, Innovation And Infrastructure
Description
Local energy systems are effectively controlled by local shareholders or members, generally value- rather than profit-driven, involved in distributed generation and in performing activities of a distribution system operator, supplier or aggregator at local level, including across borders. The term encompasses both the organisational and technological elements required.
The implementation of a local energy system shifts energy production from a centralised system to a decentralised system. In a local energy system, the energy is produced close to where it will be used, in contrast to a centralised energy production system or a national grid where the production is centralised. The local generation reduces the transmission losses and is able to adapt to the local needs. The system includes generation, storage and consumption of energy. To optimise energy consumption, a visualization of the consumption or controlled energy consumption is possible. Local energy systems can also promote civic engagement, allowing people to actively participate in energy-related decision-making. And as renewable energy sources, such as wind and solar, are usually more decentralised than traditional power sources, decentralised local energy systems offer greater opportunity to increase the usage of low-carbon energy sources.
Problems to be solved
Transmission losses
Reliance on fossil fuels
Energy management
Carbon Emissions
Reliance on distant sources
Local energy distribution
Energy price competition

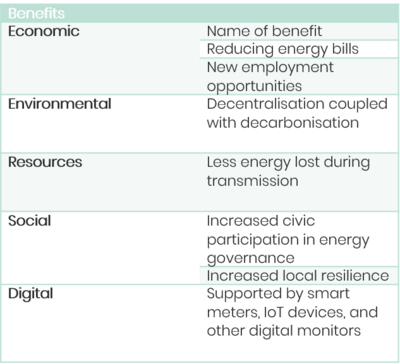

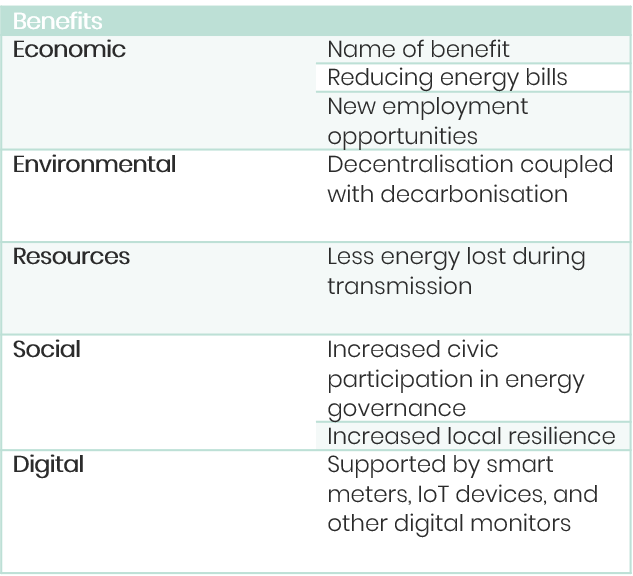

Benefits
Main benefits
Reducing use of fossils
Improving energy supply efficiency
Creating new jobs
Enabling new business opportunities
Reducing energy bills
Potential benefits
Increasing share of renewables
Reducing GHG emissions
Functions
Functions help you to understand what the products can do for you and which ones will help you achieve your goals.
Each solution has at least one mandatory function, which is needed to achieve the basic purpose of the solution, and several additional functions, which are features that can be added to provide additional benefits.
Mandatory functions
Consuming energy
Energy is consumed by the producer and/or distributed to the network for consumption
Generating energy
Energy is generated from renewable and low-carbon sources
Storing energy
Presence of energy storage solutions to manage consumption
Providing flexibility
Provides more flexibility for generation to match local demand patterns
Potential functions
Visualizing energy consumption
Demand prediction through accurate energy demand forecasts
Optimising energy consumption
Supply and demand matching based on forecasts
Products offering these functions
Energy storage solutions
Intelligent battery-based storage solutions to enable a sustainable, reliable, and cost-effective electricity supply.
There are various projects that have been done to create local energy systems. The following variants cover the broad range of models , though some can cut across diffferent variants.
Description
Local consumer servicesaim to improve energy outcomes for local people, such as through providing energy efficiency schemes, fuel poverty schemes, or energy awareness and advice schemes.
Description
A local generation asset is used to benefit local consumers. The projects are usually at least partly financed by the community and generate revenue for local use.
Description
Local supply models aim to provide local communities with affordable and low carbon energy through direct supply or retail models.
Local conditions greatly affect the effectiveness and viability of most distributed generation power sources. Local options for energy generation, such as high wind speeds, high solar irradiation or the possibility of firing Combined Heat and Power Units with locally available materials, are preconditions for sustainable local energy systems. Financially viable business cases may depend on support schemes or incentives, such as Feed-in-Tariffs.
Stakeholder Mapping
Stakeholder Map of a Local Energy System (BABLE, 2021)
Government Initiatives
Various European initiatives and regulations support the implementation of local energy systems. The following figure from the Journal of Energy Efficiency shows the regulations that apply to this solution. DG in this case stands for distributed energy generations, which is the local generation of energy. As the figure shows, the regulations that strongly support the implementation of local energy systems are the EU Sustainable Energy Goals.
An example is the Directive 2009/28/EC, which includes national binding targets for EU countries. This states that by 2020, at least 20% of EU’s final energy consumption should come from regenerative energy system. Furthermore, each Member State is required to reach a 10% share of biofuels in the overall use of transport fuels by 2020.
At European level, there are also two directives referring to smart meter deployment.
Directive 2006/32/EC: regulates the use of smart meters to increase energy efficiency and better inform customers about their consumption
Directive 2009/72/EC: (Third Energy Package) encourages the implementation of smart grids, ‘in a way that encourages decentralized generation and energy efficiency’
Problems within the implementation and operation of such systems can occur due to various regulations on integrating local energy systems in the national or international grid.

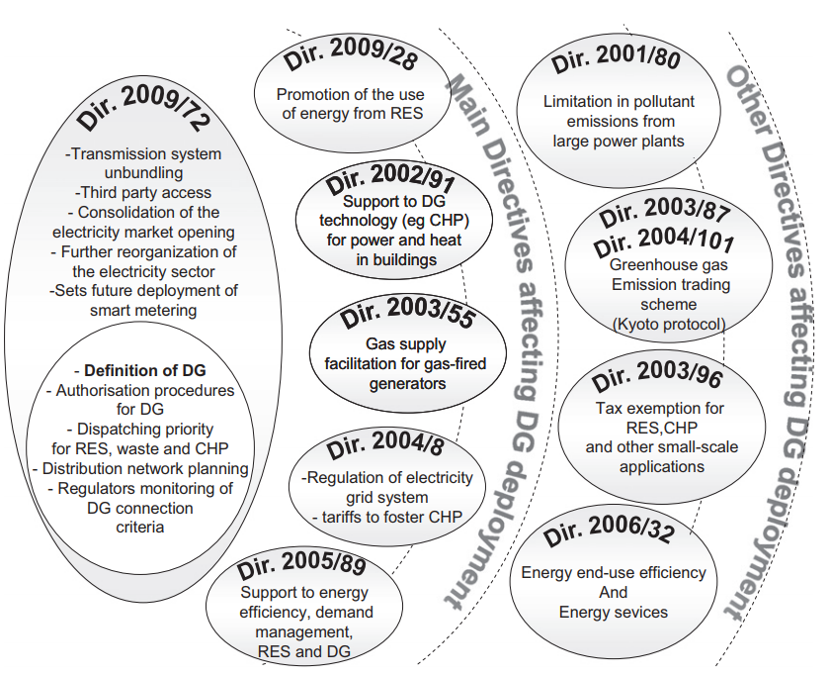

Regulations that apply to Local Energy Systems (H. Lopes Ferreira et al., 2011)
Supporting Factors
Local potentials for energy gain
Already in-place distributed generation capacity
Digital monitoring and visualizations to improve user experience, consumption levels and participation
Market Potential
Local energy schemes can enhance consumer choice and competition, and electricity supply markets are quickly diversifying. For example, in the UK, the share of the electricity market owned by independent suppliers increased from 1% to 14% between 2012 and 2016 (Ofgem 2016).
Another major market factor lies in the shipping and handling of energy, which costs billions every year. These costs occur due to the construction and maintenance of massive transmission infrastructure (11.7% to 12.9% of the total energy price) due to energy losses during transportation (circa 7% of all electricity generated) and congestion charges due to peak times. In total, Forbes estimates that the costs of energy transportation represent 25% of the energy price.
Local Energy Systems do not need to transport energy as the energy is produced where it is consumed. Therefore, this 25 % can be saved using this solution. Several studies verify the cost savings of using local sustainable energy systems. For example, a study conducted by Southern California Edison in 2012 found that the utility could save $2 billion in system upgrade costs if it guided distributed generation to key locations on its grid. Also, the Long Island Power Authority determined that the development of local solar installations could meet the rising demand for electricity while saving customers nearly $84 million in avoided transmission costs in New York.
Besides the financial benefit, distributed energy generation creates a stronger, more resilient power system in the face of extreme weather, human error or terrorist attacks.
Legal Requirements
Directive 96/92/EC on the common rules for the internal electricity market
Directive 2003/54/EC, enabling new electricity suppliers to enter Member States’ markets and allowing customers to choose their electricity supplier
Regulation EU 2016/631 establishes a network code on requirements for grid connection of generators
Regulation 2016/1388 establishes a Network Code on Demand Connection
Regulation 2013/543 creates disclosure obligations that apply to data relating to the generation, transportation and consumption of electricity
The creation of this solution has been supported by EU funding
Use Cases
Energy
ICT
Virtual Power Plant using energy markets predictions models to optimise the asset usage
AI based model used to simulate possible dependencies and to forecast the market changes and outcomes for the next days in order to optimize usage of batteries and other energy market assets
Blockchain Prototype for Local Energy Transactions
The blockchain prototype developed by LSW, leverages blockchain technology to integrate small and micro energy generation units into the energy industry. The prototype operates within the Proof-of-Authority Fury Network, facilitating transparent and efficient energy management and billing.
Energy Storage in Espoo's Positive Energy District
Thermal energy is stored in the ground (boreholes), in which excess thermal energy will be returned to and stored in the ground. An electric battery in Lippulaiva is used to optimize electricity usage and participating in electricity reserve markets.
Within the GrowSmarter project."Smart local thermal districts" is part of the building refurbishment in Ca l’Alier, which combines on-site electricity generation (PVs) with the local existing DHC network, reducing the consumption of fossil primary energy for heating and cooling production.
Sustainable District Cooling Solution that uses residual heat
A highly energy efficient district cooling system was installed in the densely populated city center of Tartu using the river cooled chillers. The system was made more energy efficient by Fortum, using a heat pump that reuses the residual heat from cooling system for the district heating system.
Solution for re-purposing Electric Vehicle (EV) batteries. EV taxis of the private company OU Takso in Tartu will be partially recharged based on renewable energy that is produced on-site with PV panels and stored in used EV batteries improving the yield of the batteries.

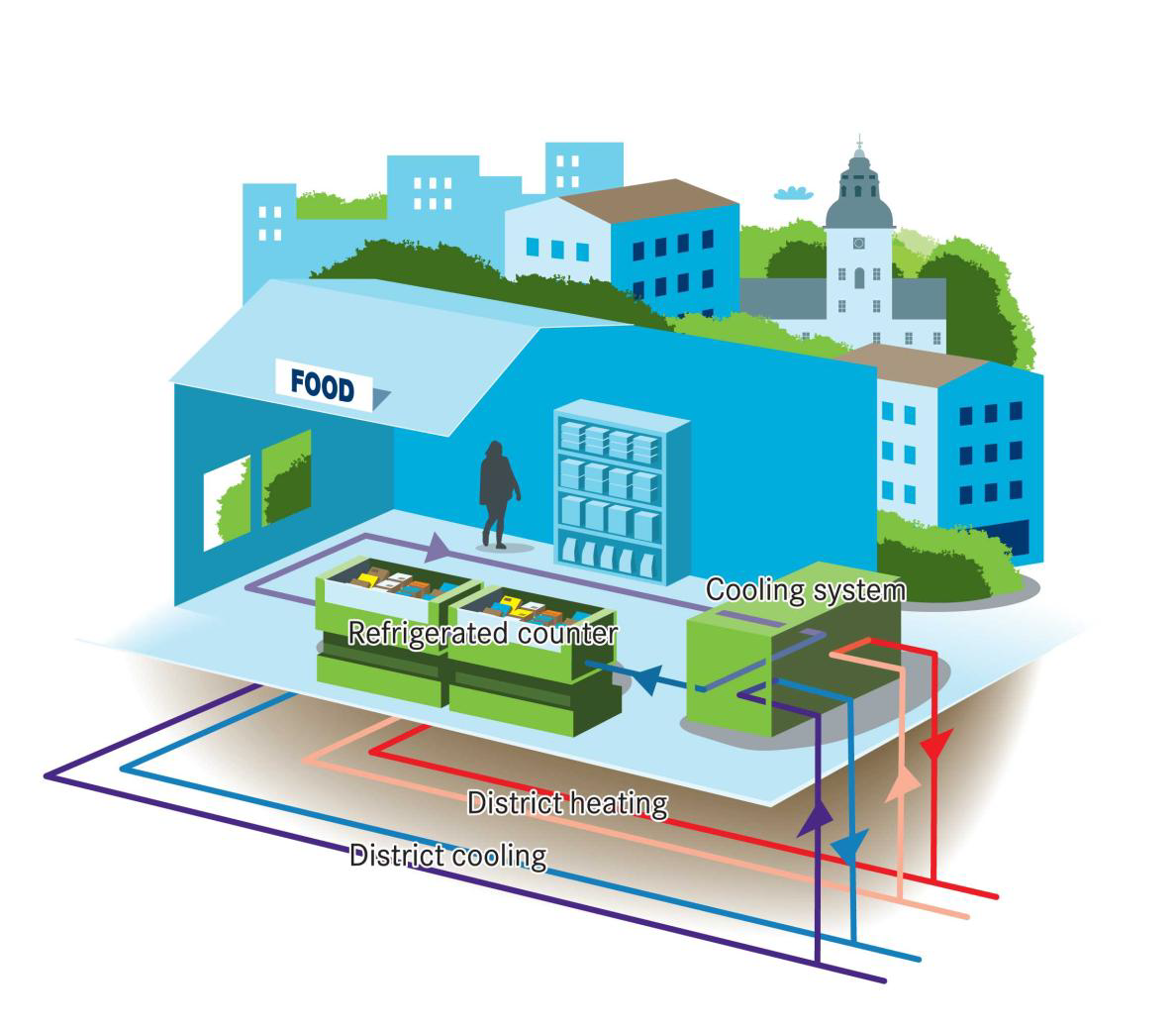

Open District Heating for Sustainable Heat Recovery
This Open District Heating aims to recover waste heat to the existing DH network by developing an innovative business model for plug and play heat pumps and contracts where the DH provider buys waste heat from local sources like data centres and supermarkets.
Switching from steam based to water based heating systems powered by biomass
Steam pipes were changed to district heating based on water as energy transmitter. The power is supplied via a biomass power plant owned by the municipality.

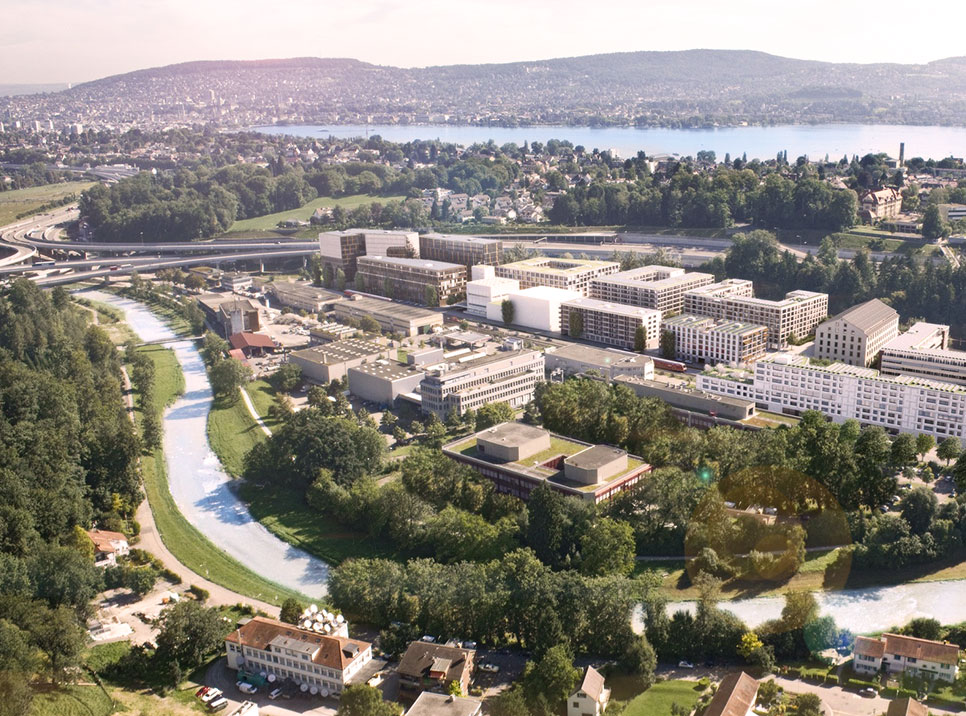

Greencity is the first urban district in Switzerland to meet the conditions of the 2000-watt society and represents a largely grid-independent area, relying on 100% supply from locally generated renewable energy sources and an innovative and environmentally friendly mobility concept.

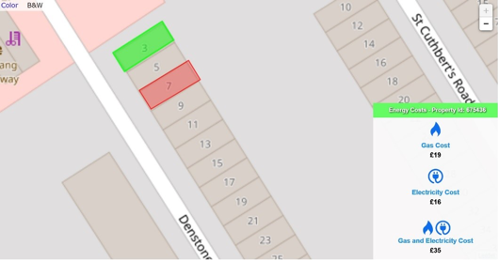

The energy maps solution as part of project REMOURBAN, represents the ability of
the citizens to visualise the energy consumption of the controlled region in
real-time.
As part of the HeatNet North West Europe Interreg project, Aberdeen is completing a pilot project in Torry. An existing district heating network within this area currently serves three multi-storey blocks. The pilot will expand this existing network, linking in three municipal buildings.
Citizens are involved in the definition of the actual needs and the most appropriate solutions for the energy community. They also participate in the design of the energy community as an entity (legal form, structure, organisation, rules of operation and governance), and management of decisions.

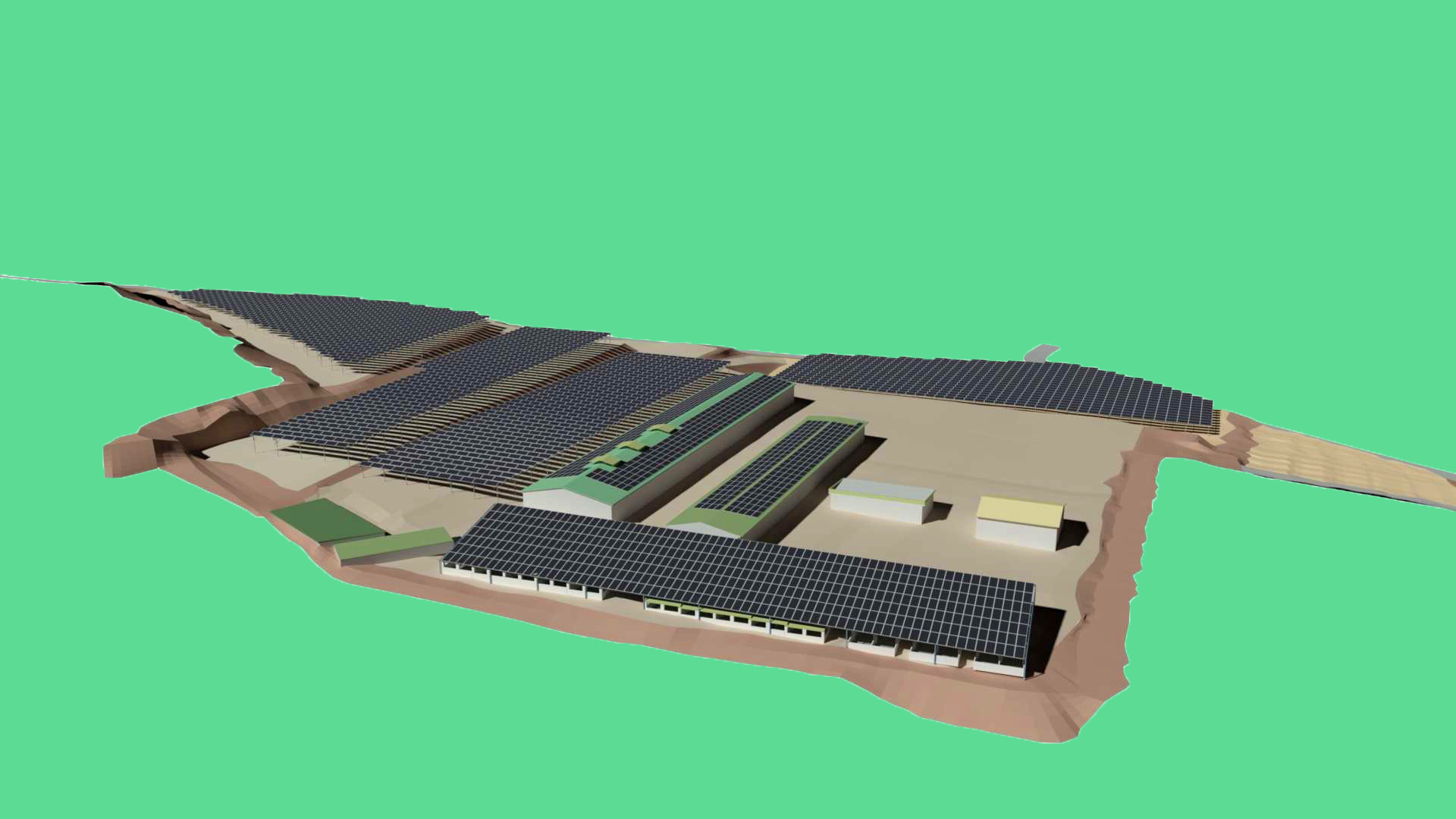

Energy Communities with Agro-Photovoltaic Projects
