Description

In Europe today, 25% of all greenhouse gas (GHG) emissions are linked to transport, with buses contributing 8% to the overall emissions. Consequently, implementing transportation systems such as Electric Bus Systems offers a solution to decrease emissions while improving the quality of transportation and life (UITP, 2019).

Electric Bus System is a public transportation system that is operated by electric buses only. As every public transportation system, it can include ticketing, customer information, and a monitoring system. Additionally, it's essential to have facilities for charging the electric buses. Due to the charging process, a management system for operations, planning of range, and route optimisation becomes even more important compared to conventional bus systems (see also SCIS).

Problems to be solved

Bad air qualityHigh CostsNoiseLack of Comfort

In comparison to conventional engines, Electric Bus Systems are free of emissions locally. Moreover, less noise is produced when driving. While the initial costs for purchasing electric buses may be higher, the overall costs of Electric Bus Systems can be lower than the one of other systems depending on the usage.

Benefits

Benefits show tangibly how implementation of a Solution can improve the city or place.

The main goal of the Electric Bus System is to reduce the local air pollution within cities. Besides that, the solution achieves the benefits listed below. Whereas some benefits are likely to be fulfilled with a basic implementation of the solution, the fulfilment of the potential benefits depends on the functions implemented in a specific project.

Main benefits
  • Reducing use of fossils

  • Promoting sustainable behavior

Potential benefits
  • Reducing GHG emissions

  • Reducing local air pollution

  • Promoting sustainable private transport models

Functions

Functions help you to understand what the products can do for you and which ones will help you achieve your goals.
Each solution has at least one mandatory function, which is needed to achieve the basic purpose of the solution, and several additional functions, which are features that can be added to provide additional benefits.
Mandatory functions
    Moving passenger by bus

    Public transportation

    Paying bus service

    Digital option for payment

    Charging electric buses

    Providing charging stations

Potential functions
    Monitoring bus system

    Management to optime functionality

    Informing passengers about bus system

    Communicate benefits and technology

Variants

A variant is generally something that is slightly different from other similar things. In the context of Solutions, variants are different options or possibly sub-fields/branches by which the Solution may be implemented, e.g. different technological options.

Aside from bus systems that do not exclusively use electricity (hybrid systems), there are three main variants for Electric Bus Systems (powered by battery with night-charging, opportunity charging or buses with a fuel cell). Moreover, there can be further differentiation depending on the charging system (plug-in charging, docking), battery types (e.g., Lithium-Ion technology (LFP, NCM/NCA, Li-Titanate)), etc.

(Fraunhofer MOEZ, 2015)

Description

The battery of the bus is charged once a day – usually at night at charging stations in the depot. These buses are suitable for shorter daily distances (ca. 100-200km).

(emcel, 2016, mobil.nrw, 2021)

Description

These buses have a smaller battery that is charged occasionally – mostly at the last stop of every route. They can be used on long daily distances (ca. 300km). Because of the charging process, they normally need longer at the last stop and require close substations. New technologies increase the efficiency of such charging processes, e.g.  fast charging or recovery of break energy (e.g., 1MW chargers with 400kW chargers already in place).

(emcel, 2016, mobil.nrw, 2021)

Description

The bus produces the energy for the electric propulsion with its own fuel cell and hydrogen that is carried in a tank. The system suits long daily distances. A hydrogen infrastructure is needed at the depot.

(emcel, 2016, mobil.nrw, 2021)

City Context

What supporting factors and characteristics of a city is this Solution fit for? What factors would ease implementation?

Additional infrastructure like charging stations or hydrogen infrastructure are needed depending on the variant implemented.

The efficiency and the necessity of Electric Bus Systems are linked to restrictions that are implemented on city or higher political level. Electric Bus Systems are expected to be supported by national and international policy and funding in future.

In general, regulations on emissions are introduced in the sector of buses first, before introducing the regulations for cars. Therefore, a diesel ban in urban areas is expected to be introduced for buses first.

The regulation (EU) 2019/1242 sets CO2 emission standards for heavy-duty vehicles. From 2025 on, manufacturers have to reduce emissions 15% compared to EU average in the reference period (1 July 2019- 30 June 2020). From 2030 onwards, there has to be a 30% reduction.

(European Commission, 2020)

Supporting Factors

  1. A strong energy grid, which can be used for charging the electric buses, simplifies the implementation of this solution.
  2. It is recommended to invest in sustainable and local energy generation to reduce energy costs and increase the environmental benefit of the Electric Bus System.
  3. A local smart grid supports balancing loads.

Government Initiatives

What efforts and policies are local/national public administrations undertaking to help further and support this Solution?
  • The EU invests €2.2 billion in 140 key transport projects which also include electric bus projects. The projects will be supported through the Connecting Europe Facility (CEF) and are part of the efforts to fulfil the European Green Deal.
  • Most e-buses which are currently in operation are supported by local governments as a part of a pilot project. In Germany there is a funding program called “Anschaffung von Elektrobussen im öffentlichen Personennahverkehr” that helps to buy or lease buses with electric or hybrid propulsion. The total national funding adds up to €650 million.

(electrive.net, 2020, Federal Ministry for Economic Affairs and Energy, 2020, European Commission, 2020)

Stakeholder Mapping

Which stakeholders need to be considered (and how) regarding the planning and implementation of this Solution?

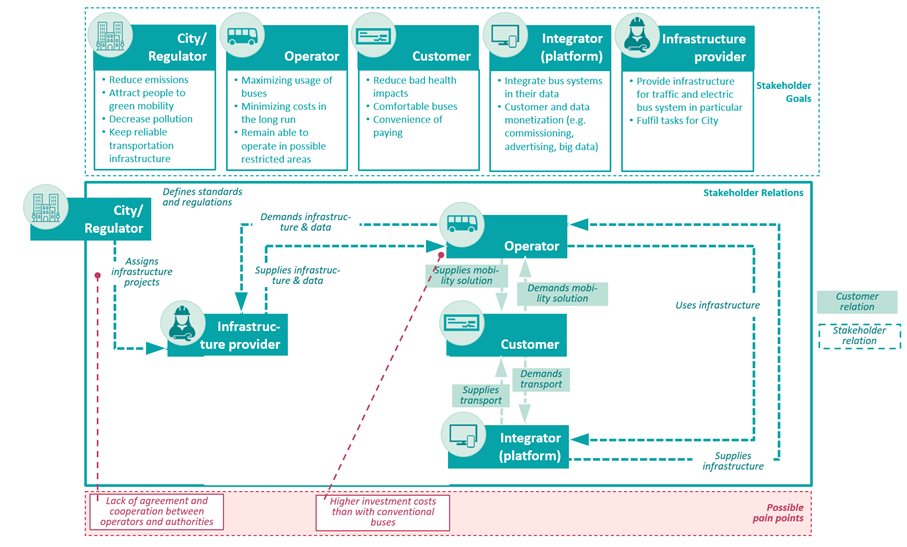

Stakeholders in electric bus systems (BABLE, 2021)

Market Potential

How big is the potential market for this Solution? Are there EU goals supporting the implementation? How has the market developed over time and more recently?

In 2019, there were about 3.000 electric buses in Europe and the United States, which only represents 1% of all buses. However, a rapid growth is predicted for the next years and is highly driven by legal regulations and government initiatives. Cities like Paris, Moscow or Berlin are planning to purchase hundreds of new electric buses in the upcoming years.

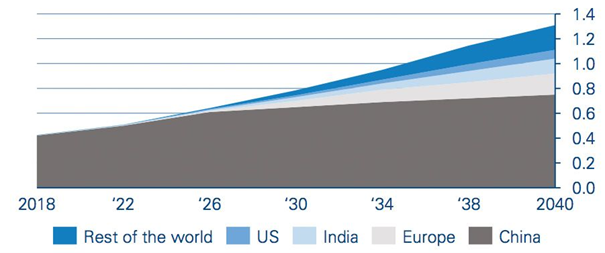

Global municipal e-bus fleet (Consultancy.eu & Bloomberg, 2020)

The number of electric buses in Germany since 2009 shows a huge development and forecasts predict a further rise in electric buses for the future.

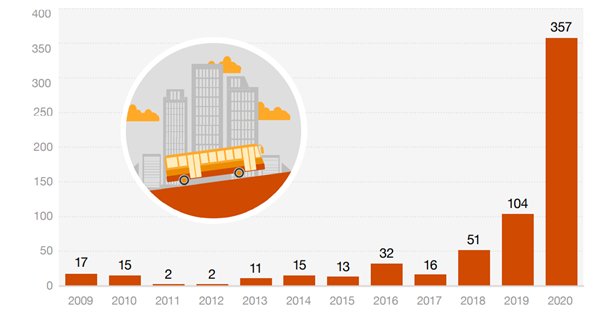

Development of electric buses in Germany since 2009 (PwC, 2020)

Cost Structure

High investment costs of electric buses in comparison to conventional (diesel) buses can be balanced with lower operational costs and longer lifespans (e.g. image Proterra). Some operators produce their own regenerative energy for the buses. The profitability of e-buses will increase as soon as there are stricter emission regulations or even diesel bans in urban areas. Restrictions are expected to be introduced in various European cities within the next few years.

Example Proterra

The graph shows the profitability of the operation of electric buses in comparison to other buses over a lifetime of ten years. The data is obtained out of manufacturer specifications from Proterra, who - as of March 2017 - is one of three e-bus manufacturers providing buses on large scale. According to this calculation, electric buses are cheaper despite higher investment costs since costs for fuel and maintenance are much lower compared to traditional buses.

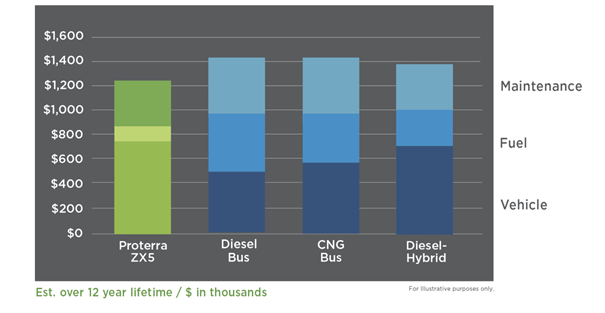

Comparison of total cost of ownership (Proterra, 2021)

This calculation does not include the infrastructure of charging stations needed which is often the actual challenge. Depending on the technology, the infrastructure can cost a multiple than the implementation costs of the buses. The tendering process should be suitable for an economic construction of the infrastructure. One solution could be that the municipality provides the infrastructure, and the bus operators provide only the buses.

Legal Requirements

Relevant legal directives at the EU and national levels.
  • Directive 2009/33/EG: Clean Vehicles Directive: directive to encourage clean and energy-efficient vehicles (EUR-Lex, 2021)
  • Regulation (EU) No 582/2011: update to Directive (EG) no 595/2009, regarding emissions of heavy-duty vehicles (EUR-Lex, 2021)
  • VO(EG) 595/2009: on type approval of heavy-duty vehicles (EUR-Lex, 2021)
  • UN-R49 regulation: regarding measures against emissions of engines used for transport (EUR-Lex, 2021)
  • 2007/46/EG: Regulations on busses in general (EUR-Lex, 2021)
  • RL 2001/85/EG (EUR-Lex, 2021) and UN-R66 (EUR-Lex, 2021): Security Regulations for Buses
  • UN-R100: Security Regulation for electric vehicles (EUR-Lex, 2021)
  • Richtlinie zur Förderung der Anschaffung von Elektrobussen im öffentlichen Personennahverkehr, by the German Federal Ministry for the Environment, Nature Conservation and Nuclear Safety (beck-online, 2021)

The creation of this solution has been supported by EU funding
